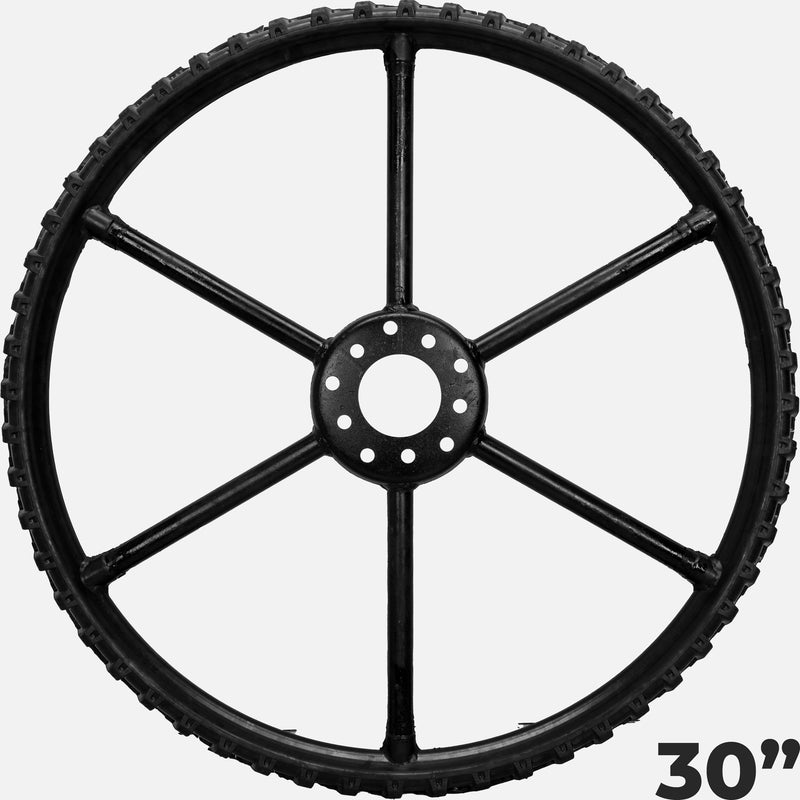

Wagon Cart Wheel (30" and 24")

Fireball ToolSKU: F5-WGW024

Diameter: 24"
Price:
Sale price$181.00 NZD

Description

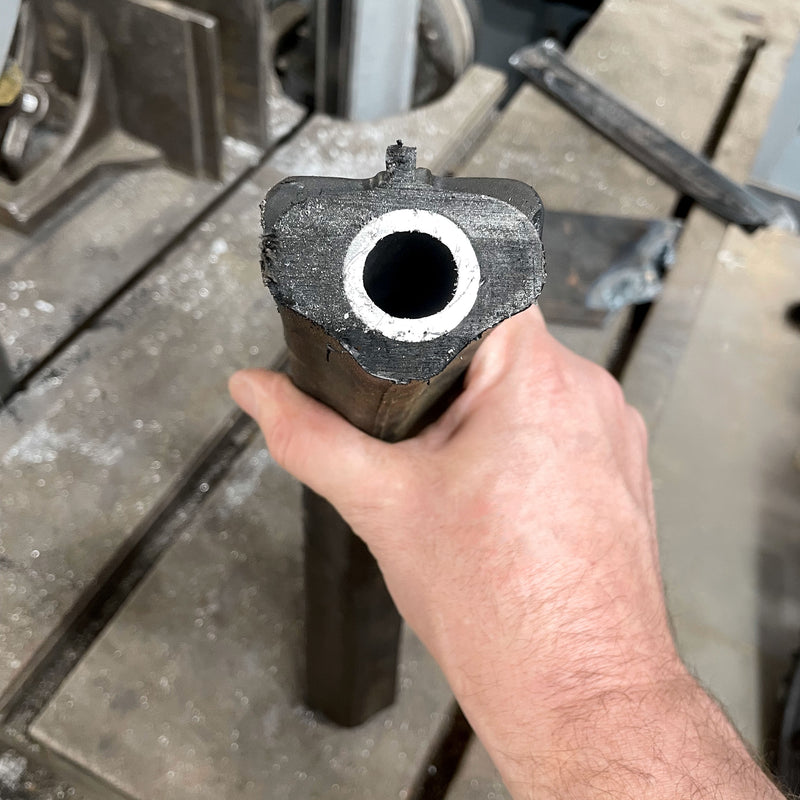

This is a airless tire perfect for equipment, consisting of a thick rubber tread molded over 1/8" wall tubing.

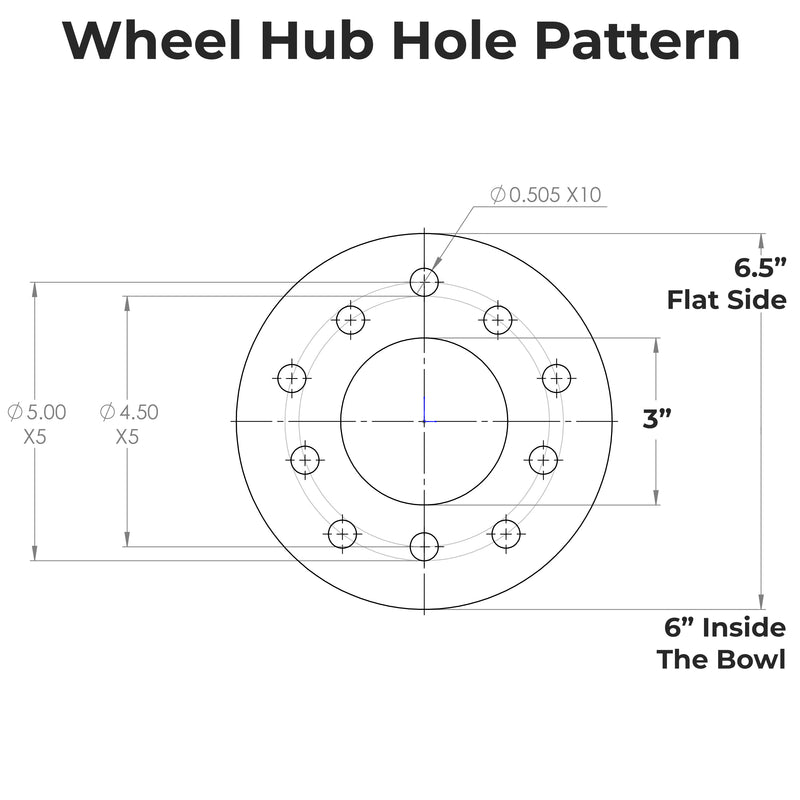

Features a load rating of 600 lbs per wheel and compatible with two different axle hub patterns:

  • 5 on 4.5"

  • 5 on 5"

2" wide wheel, tread depth is between 3/16 and 1/4".

Each bolt hole is large enough for a 1/2" fastener, center hub fits 3" shaft.

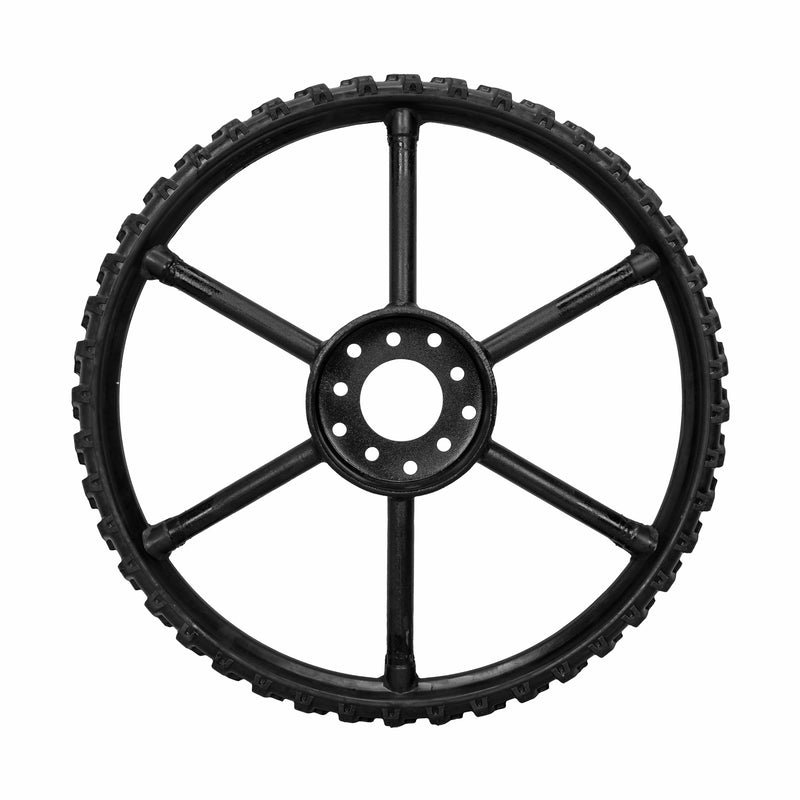

Suggested use is to mount on the "outside" flat surface, if using the inside "dished" surface as the bolting face, will need to use spacers.

Both the 24" and 30" diameter wheels have the same mounting pattern, just the diameter is dfferent.

If in doubt, please use this tool to check your equipment before purchasing.
