24"x18" Drill Press Fixture Plate

Save $52.00
SKU: FA75-PLT2418-Q-TH
Table System: 3/4" Diameter
Price:
$741.00 NZD $793.00 NZD

Drill Press Fixture Plate

Applications

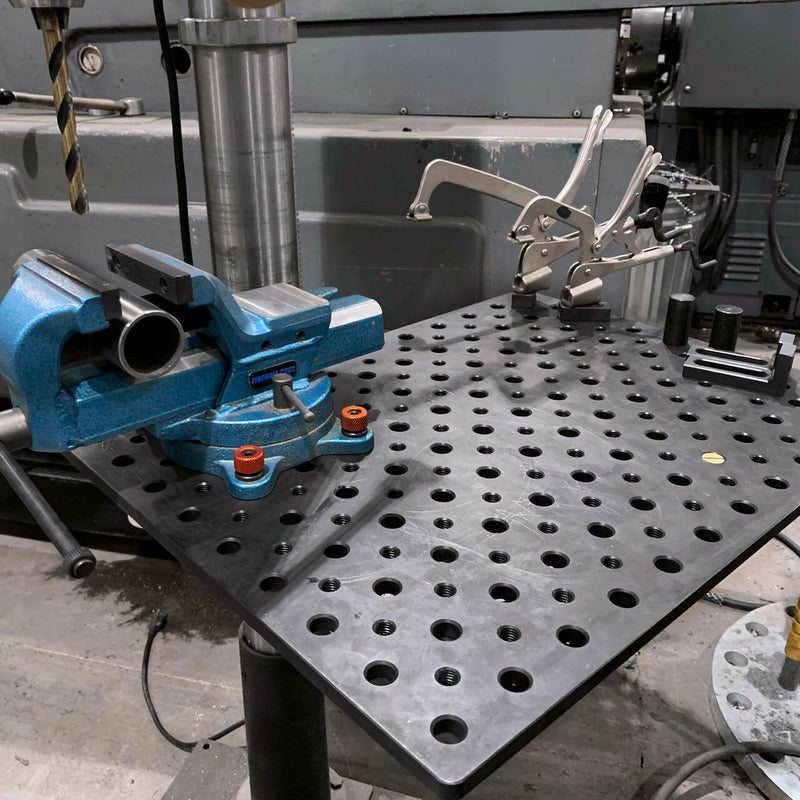

One great application we’re using it for is pairing it with a large drill press. You can mount all the BuildPro clamps on it and quickly mount and dismount the 4 “or 5” Fireball Vise if you pair it with the BuildPro ball lock bolts.

  • Tolerance 0.015" (1/64)
  • Nitrided
  • Available in 5/8" or 3/4"
  • 5/8" Thick
  • 1/2-13 tapped holes on 2" centers
  • Use as aa small table by adding feet (Sold seperately)
  • Weight: 72 lb

Mounting it on a Drill Press

There’s a couple ways to mount this plate to an existing drill press table. Most drill press tables either have through holes and slots, or T-slots. When you bolt it to your existing table surface, you will need to leave some space between the new plate and the existing plate for the BuildPro clamps and ball lock bolts.

You can either use flush mount shoulder bolts to mount the plate using the 5/8 diameter holes, or you can use threaded rods, bolts, or T-slot nuts to mount using the threads.

Add The Foot Kit

$24

4x Leveling Foot with 1/2"-13 Stud

4x Plastic Pad for Leveling Foot
