The Dragon Wagon is purpose-built for a different kind of user — someone who wants a highly organized, fully mobile, all-in-one workstation. Everything you need to do your job — welder, gas bottle, tooling, fixtures, seating — can be stored at or around the Dragon Wagon, and the whole setup rolls with you wherever you need to work. One of the Dragon Wagon’s most powerful features is that it is designed to be combined. The 4-inch sidewall is specifically engineered to allow multiple Dragon Wagons to be joined together — creating L-shapes, long runs, square configurations, or whatever your shop layout requires. They can also serve as a temporary expansion surface alongside any Standard Duty or Heavy Duty table.
More Stuff
Dragon Wagon 4.5' x 2.5' (54" x 30" x 4")
- Coating- Corrosion, spatter, and scratch resistant Dragon Scale
- Ribbing- Full height 4" ribbing engineered to torsional rigidity
- Holes- All counterbore and chamfered on back sides
- Side face on the tables are 4" tall with 1 row of holes.
- The modular leg accessory system provides an extensive range of customization options.
- 1/2" thick table that shares all the same fixtures as the 1" thick table.
- Flatness (+/- .005) full length, corner to corner
BEST SUITED FOR:
• Robotic welding cells — specialized tooling and fixtures organized and kept close at hand
• Home hobbyists — who want a professional-grade table without a large floor footprint
• Colleges and training facilities — looking for a compact, professional workstation
• Any shop — wanting a flexible, mobile secondary or satellite station
CAD FILES
Tabletop Dimensions
4.5' x 2.5' (54" x 30" x 4")
Table Side Height
4"
Table Thickness
1/2"
Hole Diameter
3/4"
Grid Pattern
2"
Material
Gray Cast Iron
Finish
Dragon Scale
Table Top Weight
375 lb
Shipping Weight
425 lb
Leg Type
DW Legs
Number of Legs
x4
Capacity Per Leg
600 lbs
Rated Weight Capacity with Legs
2,500 lbs
What Is Dragon Scale Coating?
Superior Anti-Spatter Properties
Improved Corrosion Resistance
Enhanced Wear Resistance
Steel vs Dragon Scale Coating
Nitride vs Dragon Scale Coating
Full Video (Dragon Scale Demo)
Spacer Requirement for Tacking Bolt Use (Sold Separately)
These spacers are designed for table systems with 3/4" diameter holes where the table thickness is less than 1".
Fireball tacking bolts are designed to clamp 1" thick Fireball blocks to 1" thick tables. When used with thinner tables, a spacer is required to achieve proper clamping force.
For Pro Series & Dragon Wagon & Standard Duty Tables which are 1/2" thick, we recommend using one 1/2" thick FA75-BSP050 spacer per tacking bolt.
FA75-BSP050 spacers are required for proper use and are sold separately.

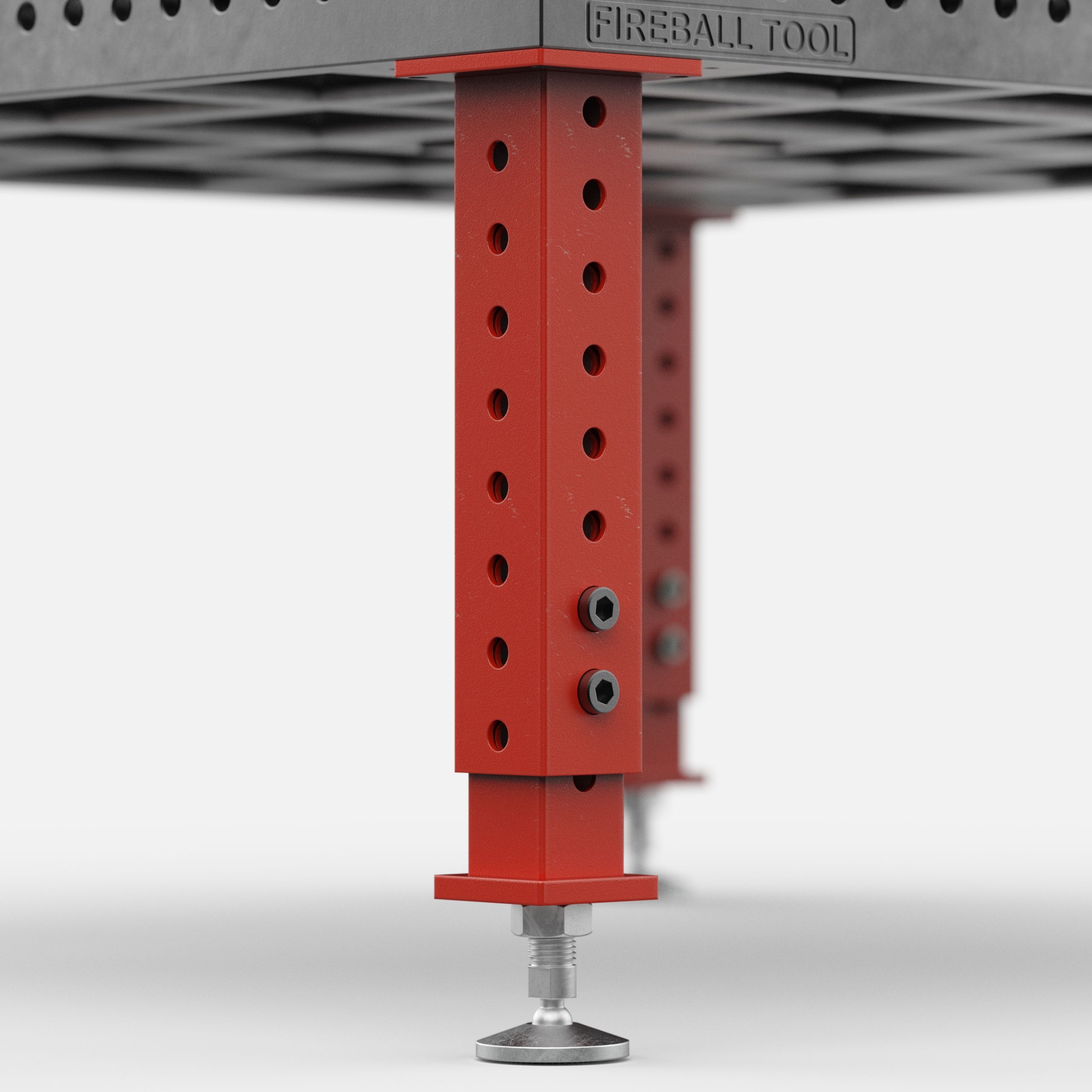

Adjustable Height Leg
Leg Height: 21" - 31"
Table Surface Height: 25" - 35"
Static Load Capacity: 1,200 lb
Outer Tube Outside Diameter: 3.3", 0.20" Thickness
Inner Tube Otuside Diameter: 2.75", 0.15" Thickness

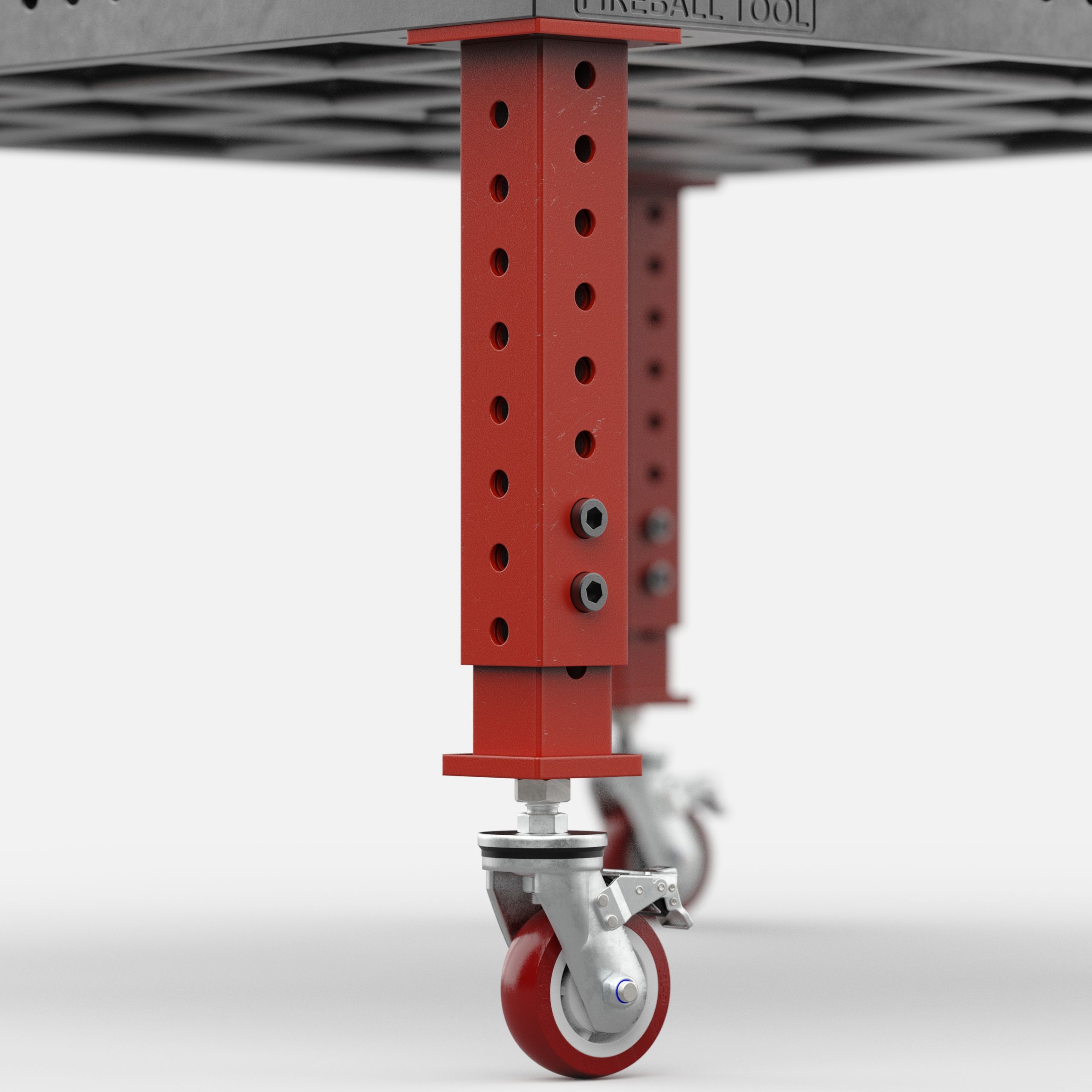

Adjustable Leg + Caster
Leg Height: 26" - 36"
Table Surface Height: 30" - 40"
Static Load Capacity: 750 lb
Outer Tube Outside Diameter: 3.3", 0.20" Thickness
Inner Tube Otuside Diameter: 2.75", 0.15" Thickness
DIY Legs 4-IN-1
Tube length: 29.5" (3/16 wall thickness)
Top Plate: 5/16" thick
Bottom Plate: 5/16" thick
Leveling Pad: 2" thread length (1/2-13 threads), 2.75" total length.
Nuts: 1/2-13 threads
What Comes With The Workstation Kit?
Full Kit
FA75-DGW-WSP54-KD
These are included only when the workstation add-on is selected.
Slag Tray Assembly
FA75-DGW-SGT542-PPK
- 3pc Set
- Slide out slag tray & 2 drawer
Shelf Assembly
FA75-DGW-SHF2812-PPK
- Reversible shelves
- Comes with a set of 2 shelves
Foot Shelf Assembly
FA75-DGW-FTR54-PPK
- 44.75" x 19.75"
Already have a table but not the kit?
Tabletop Construction
1/2” thick Gray Cast Iron on top and 1/2” thick sides, additional reinforcement ribs underneath. Machined flat on all 5 sides to within +/- 0.0025” per 24” x 24” area. Side apron on the tables are 4” tall with 1 row of holes.
Dragon Scale Coating - Corrosion, spatter &scratch resistant

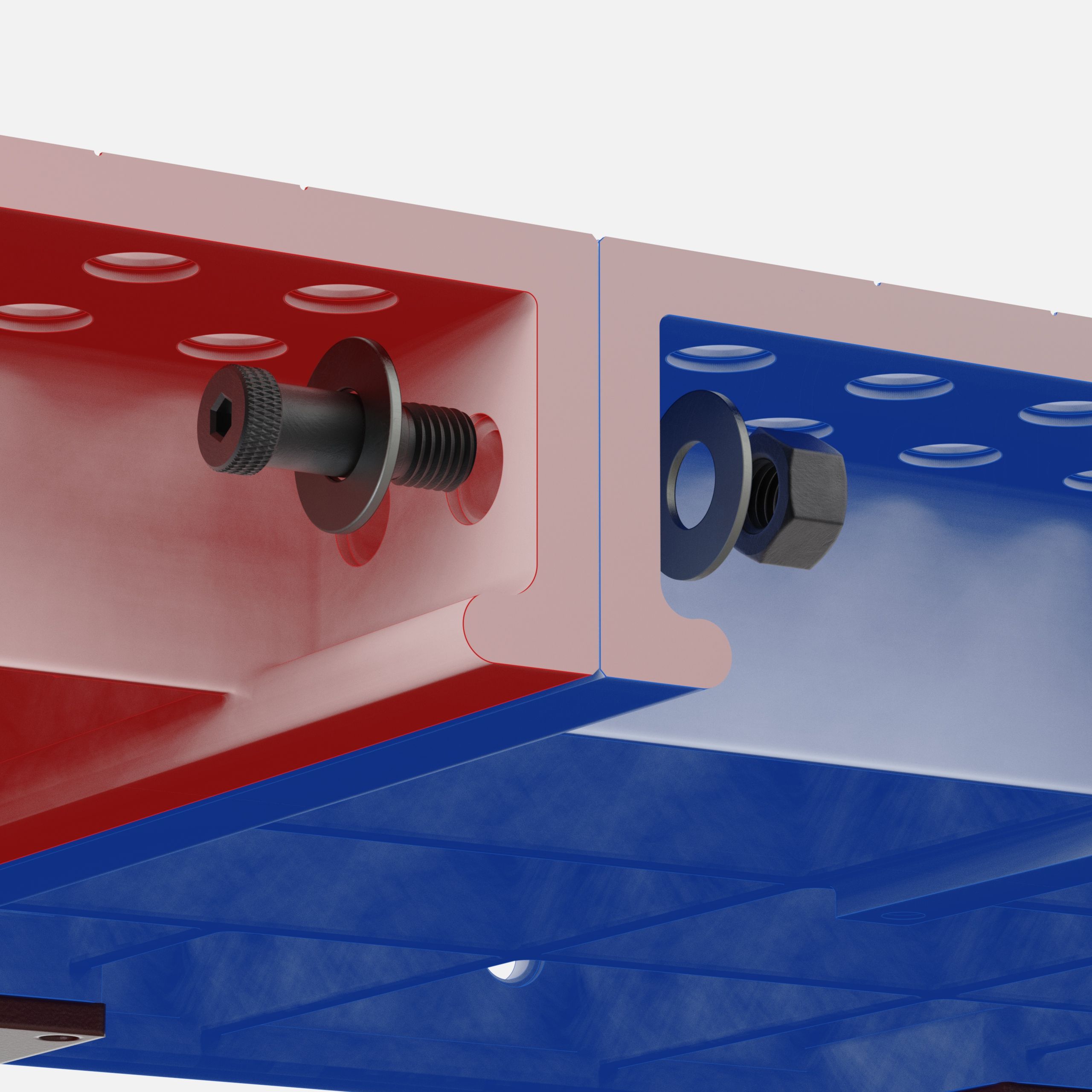

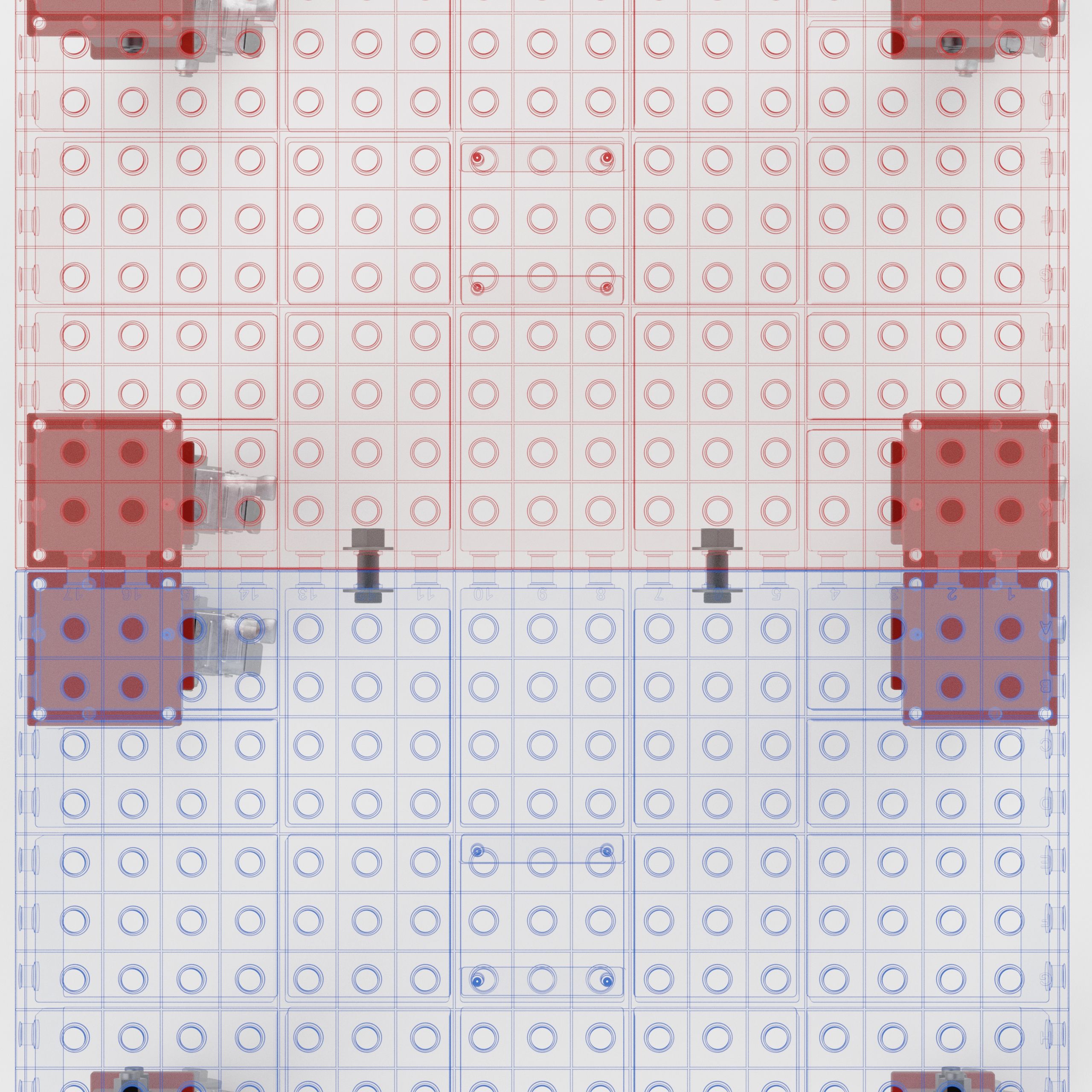

Connect Your Tables Together
Connect any number of tables together by using tacking bolts along with spacers.
Counterbore Underside
Chamfer on top and bottom
Dragon Scale Coating
Table Series Comparison
Full Specification Comparison
| X-Frame | Heavy Duty Series | Standard Duty Series | Dragon Wagon Series | Pro Series Kits | |
Hole Size | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" |
Grid Pattern | 2" x 2" | 2" x 2" | 2" x 2" | 2" x 2" | 2" x 2" |
Plate Thickness | 1" | 1" | 1/2" | 1/2" | 1/2" |
Set Screw Leveling | | ||||
Flatness | (+/-) 0.007" | (+/-) 0.005"Entire Table | (+/-) 0.005"Entire Table | (+/-) 0.005"Entire Table | (+/-) 0.005" (With Leveling)Entire Plate |
Sidewall Height | 8" | 8" | 6" | 4" | |
Material | P20 Tool Steel (Top Plate)Cast Iron (Frame) | Cast Iron | Cast Iron | Cast Iron | Steel |
Finish | Nitride (Top Plate)Dragon Scale (Frame) | Dragon Scale | Dragon Scale | Dragon Scale | Dragon Scale |
Grid Lines | Yes | Yes | Yes | Yes | No |
Coordinate System | Yes | Yes | Yes | Yes | No |
Legs | Heavy Duty | Heavy Duty | Standard Duty | Standard Duty | Angle Iron |
Tacking Bolt Spacer Size | 1/2" | 1/2" | 1/2" |
Available Sizes
| Nominal Size (ft) | Dimensions (inch) | X-Frame | Heavy Duty | Standard Duty | Dragon Wagon | Pro Series |
| 13 x 6.5 | 156 x 78 | |||||
| 10 x 5 | 122 x 60 | |||||
| 6.5 x 6.5 | 78 x 78 | |||||
| 8.5 x 4.5 | 102 x 54 | |||||
| 6.5 x 4.5 | 78 x 54 | |||||
| 4.5 x 4.5 | 54 x 54 | |||||
| 6 x 3 | 72 x 36 | |||||
| 4.5 x 2.5 | 54 x 30 | |||||
| 3 x 3 | 36 x 36 | |||||
| 3 x 2 | 36 x 24 | |||||
| 2 x 1.5 | 24 x 20 |
Features
| Feature | X-Frame | Heavy Duty | Standard Duty | Dragon Wagon | Pro Line |
| Plate Thickness | 1" | 1" | 1/2" | 1/2" | 1/2" |
| Sidewall Height | 8" | 8" | 6" | 4" | None |
Choosing The Table That’s Right For You
The Fireball 3/4 fixture system uses the same fixtures for all tables. So whether you are starting with a mobile 1/2" thick plate or a truck sized heavy duty table, all fixtures work on both tables.
X Frame
X Frame tables feature a rigid cast iron base with a nitrided, 1" thick tool steel plate on the top surface for added wear resistance.
- Tool Steel Plates that can be reversed or replaced
- Each plate features leveling screws to dial in flatness
- P20 Tool Steel with Nitride Finish for HRC50 hardness provides extra wear resistance
- Railroad Track style ribbing for extra rigidity
Heavy Duty
Heavy Duty Series Tables feature single piece, cast iron construction for best rigidity and flatness with 1" thick top and sides.
- Machined from single piece casting, 1” Thick Top and Sides
- Our most rigid table series
Standard Duty
Same construction method as heavy duty series, but with 1/2" thick top and sides.
- Machined from single piece casting. Holes machined to ½” thickness, with extra material and thickness on the underside
- Railroad track style ribbing for extra rigidity
Pro Line
Ultimate work station solution that keeps everything organized.
- Machined from single piece casting. Holes machined to ½” thickness, with extra material and thickness on the underside
- Reinforced railroad track style ribbing on perimeter for extra rigidity
| Your Situation | Recommended Table |
| Multi-material work, high-production with crane loading, resurfaceable top | X-Frame |
| Heavy structural work, frame straightening, large weldments | Heavy Duty |
| Professional fabricator, everyday production work | Standard Duty |
| Mobile workstation, robotic cell, compact shop, combinable layout | Dragon Wagon |
| Student, hobbyist, light repair, farm maintenance | Pro Table |
Modular Accessory Legs
Modular system that allows for a huge variety of accessory customization. (Add shelves seats, leg braces, slag tray and more.
Distance between legs:
Long Side: 26.5"
Short Side: 13.5"
Bolts are to be installed parallel to the short side.
How does the FA75 system compare to other Table Systems?
FA75 - Ø3/4"x2"
FA625 - Ø5/8" x 2"
- 2" Grid Pattern
- 5/8" Diameter Hole
FA16 - Ø16mm x 2"
- 2" Grid Pattern
- 16mm Diameter Hole
FA28 - Ø28mm x 4"
- 4" Grid Pattern
- 28mm Diameter Pattern
Fixturing System
FA75 - Ø3/4" x 2"
The Fireball Tool fixture system is superior to others on the market. It features blocks that can be used in many different ways to maximize their usage. It also can be incrementally adjusted to ensure maximum coverage as efficiently as possible while others fail to reach certain distances without a complicated fixture.
FA625 - Ø5/8" x 2"
FA16 - Ø16mm x 2"
FA28 - Ø28mm x 4"
Videos
Fabricator Skills Test Build - Livestream 1/3/2024
I show fixturing fundamentals on how to beat a fabricator's skills test. I'm going to build it within a profitable timeline. I will also be answering questions. I'll do all of this on the new Fireball Dragon Wagon table.
Avoid Arc Strikes with 3 Steps:
- Always ground directly to the workpiece.
- Clamp the workpiece down.
- Ensure you have a clean table surface
Workpieces often make poor contact with the table, which increase the likelihood of arc strikes. Grounding directly to the work piece prevents this.
Clamping the work piece down helps to maintain better contact between the work piece and the table.
Having a clean table surface also ensures you have better contact between the table and the workpiece.
Why These Steps:
- Workpieces often make poor contact with the table, which increase the likelihood of arc strikes. Grounding directly to the work piece prevents this.
- Clamping the work piece down helps to maintain better contact between the work piece and the table.
- Having a clean table surface also ensures you have better contact between the table and the workpiece.
How to Install Legs on a Dragon Wagon
This is how to install legs on a Dragon Wagon. Remember, it is heavy so try to get a friend to help you.
Step 1: Stand the table up on its side (You can use a clamp in one of the side holes in order to get a grip, there is a GIF at the bottom that demonstrates this)
Step 2: Brace the table so it does not tip over.
Step 3: Put the legs on horizontally, starting from the bottom legs (make sure the holes line up on each leg across from one another). Torque the bolts to 30 ft. lbs.
Step 4: Stand the table up now that all legs are on. Remember, the table weighs upwards of 200 lbs - 400 lbs depending on the size, so be very careful (this is where your friend can help)
