Inserta Pliers - 5/8" System

SKU: FB-BP-PTT522K

Capacity: 2.3"
Price:
Sale price$19.00 USD

Inserta Pliers - 5/8" holes

Mount on the Right Angle Bracket, Riser Block, or Clamping Squares for push down clamping at an elevated height for taller workpieces. The patented rear crank handle allows clamp pressure adjustment while the clamp is in locked position. Use the crank handle to pre-set the clamp opening in repetitious clamping applications.

  • Get the swivel Mounting Adaptor for 1″ extended reach, or retraction.
  • Can be used with Magnetic Top V-Pad to hold round parts.

Specifications

Part No. Throat Depth A (in) Max. Capacity B (in) C (in) Weight (lb)

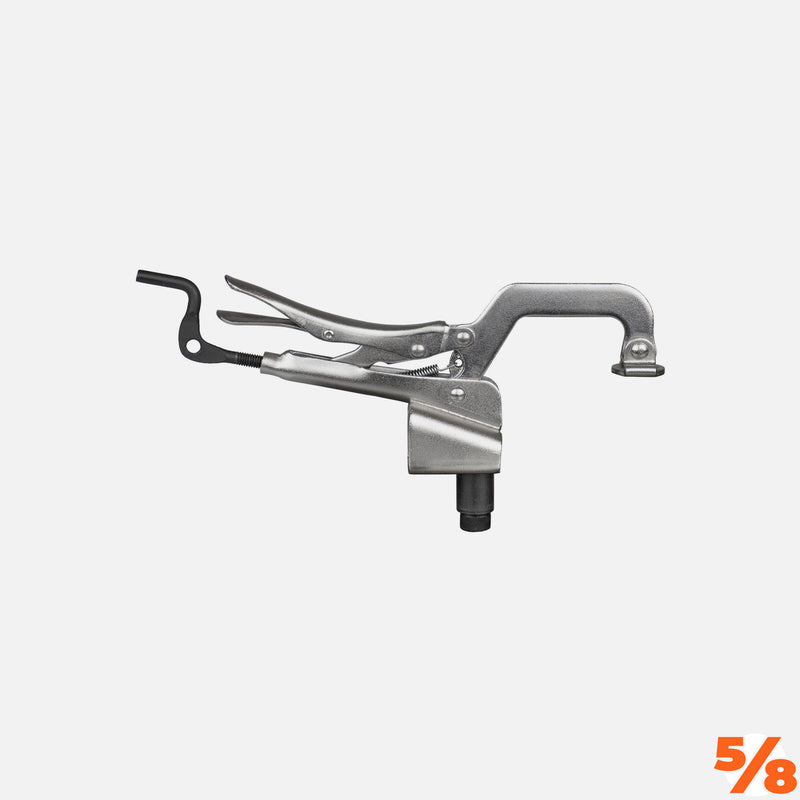

PTT522K

2.0

2.3

4.0

0.7

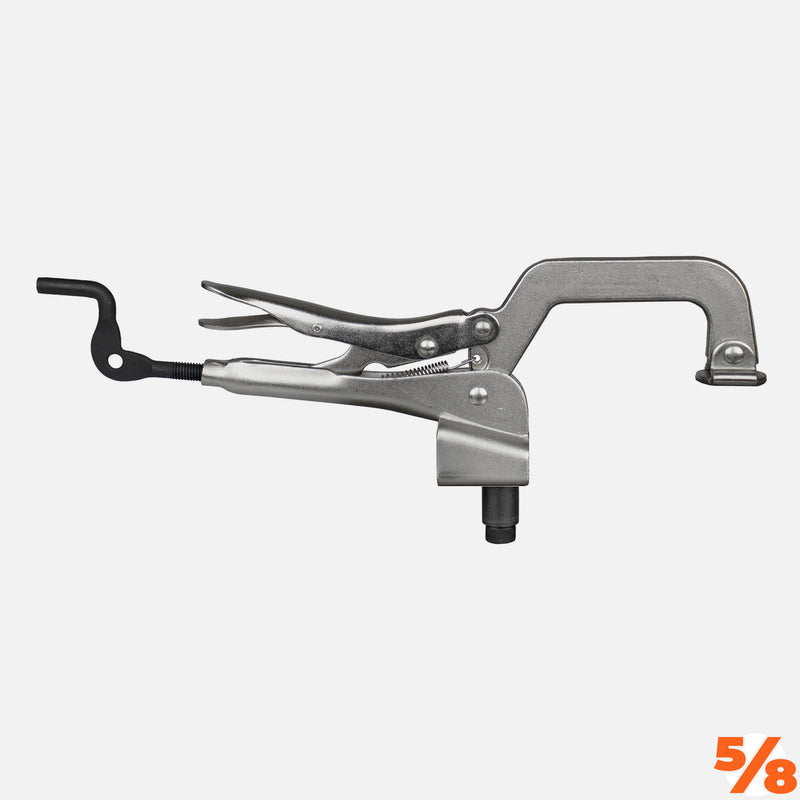

PTT634K

3.4

3.3

5.5

1.2

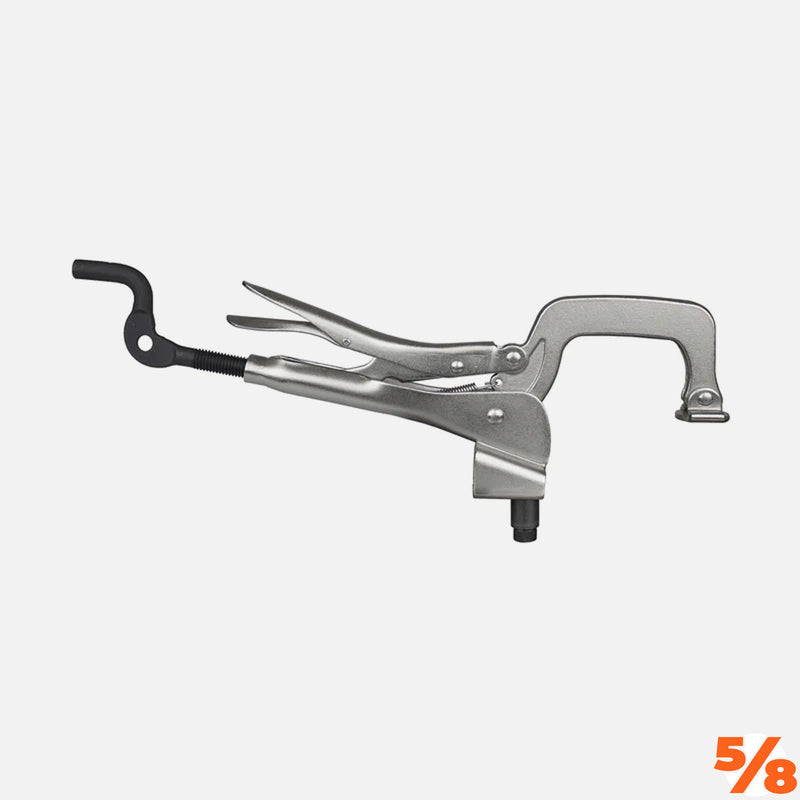

PTT934K

3.4

4.0

6.5

1.6

PTT956K

5.8

5.5

6.5

1.8
